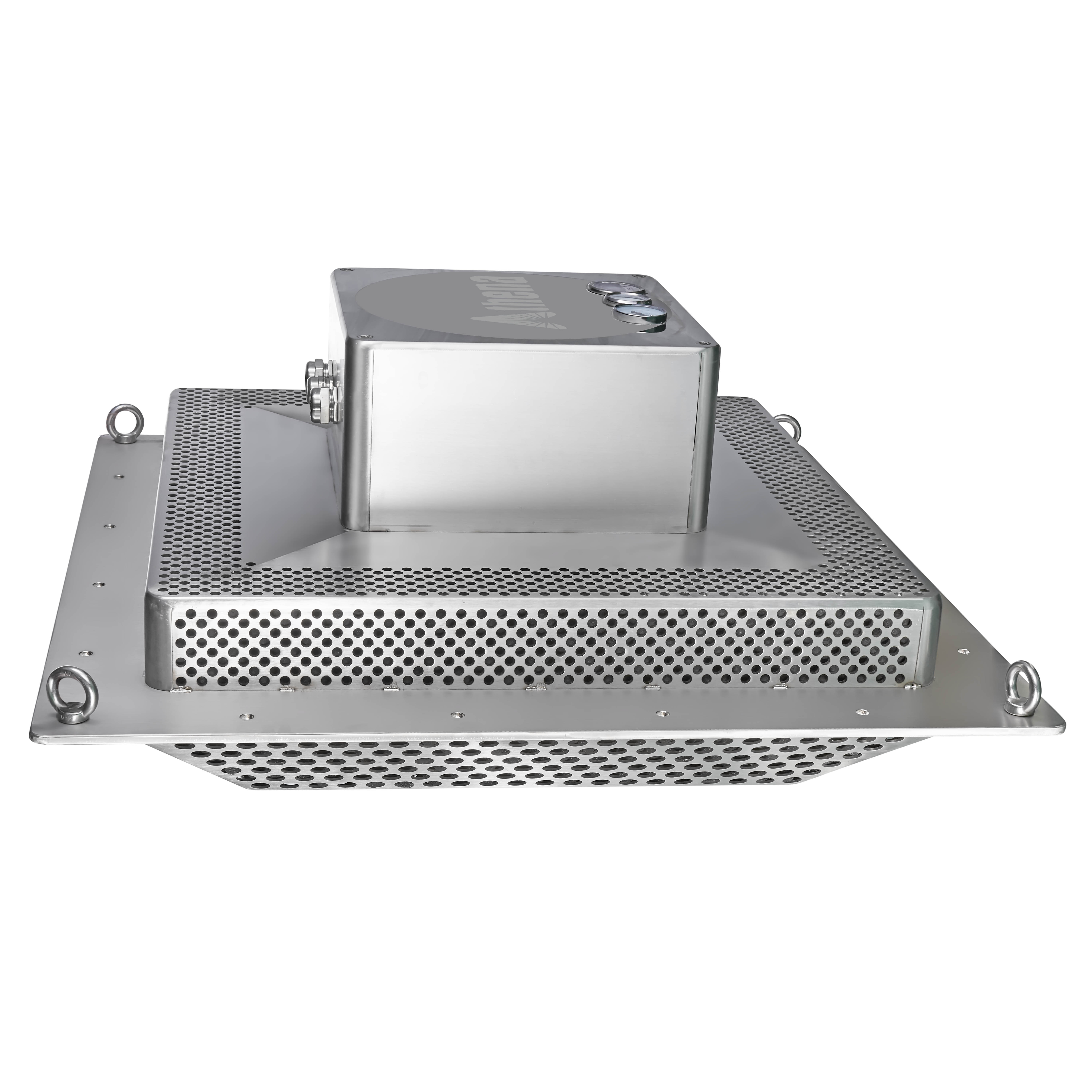

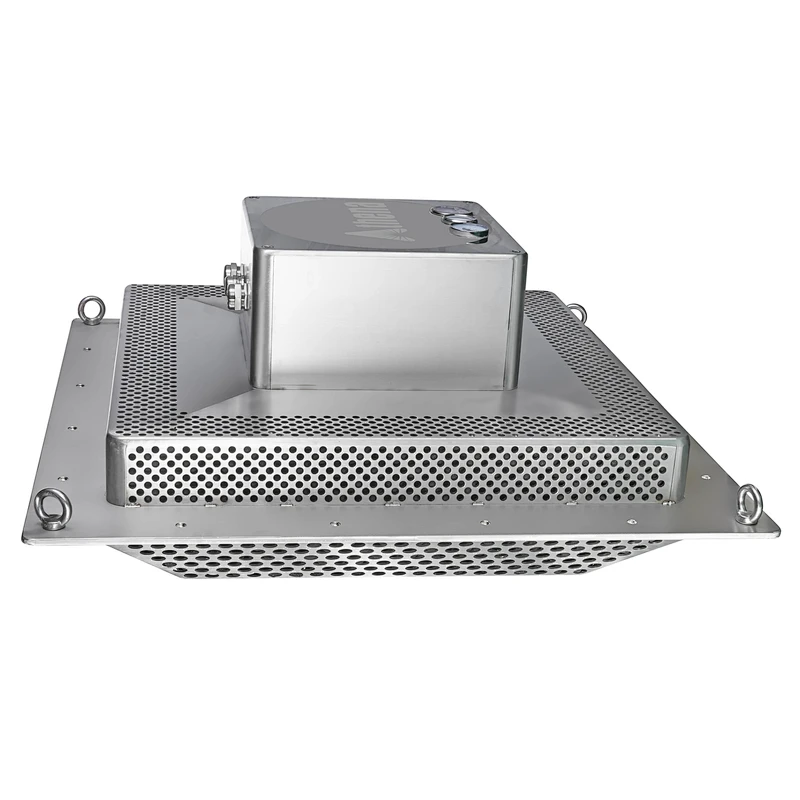

Vacuum Flush

1.Product Use and Overview
Vacuum Flush is mainly used for flushing rainwater storage pond and pipeline cleaning. It can be used in the storage pond as a replacement of Flushing Gate.

2.Principle of Operation and Structure
When the water level monitoring system monitors that the water level in the storage pond rises, the control system closes the vacuum diaphragm valve and starts the vacuum pump to pump the water in the water storage room, so that the liquid level in the water storage room reaches the flushing level and maintains this height for a long time.
When it is monitored that the storage pond is emptied, the control system opens the vacuum diaphragm valve. The vacuum inside the storage chamber is disrupted, and the flushing water is flushed out from the storage room to flush the bottom of the storage pond strongly.

3.Technical Advantages
(1)All parts can be maintained without entering the pool
(2)Good flushing effect
(3)Single flushing corridor width up to 10m
(4)Flushing effect is not affected by the pond shape
(5)No additional water supply is required, the water source comes from the pond sewage
(6)Fully automatic operation, remote control
